Circuit Design Examples
Shown below are some pictures of pc boards designed by Henning Engineering. PC board design is a necessary skill for any circuit designer and is something we take seriously. All our boards are designed with an emphasis on ease of assembly and testability.
PCB for 16 channel pin card for IC tester.

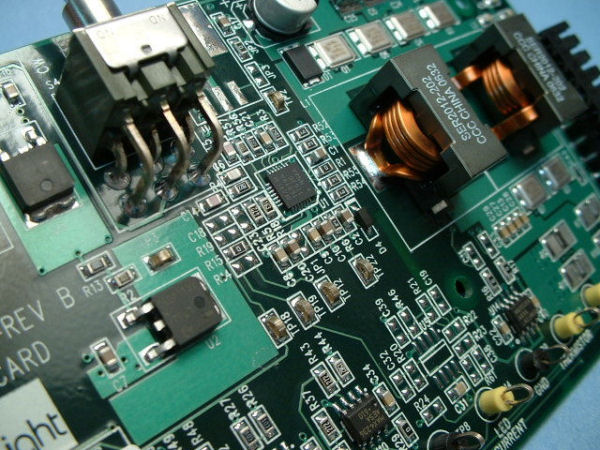

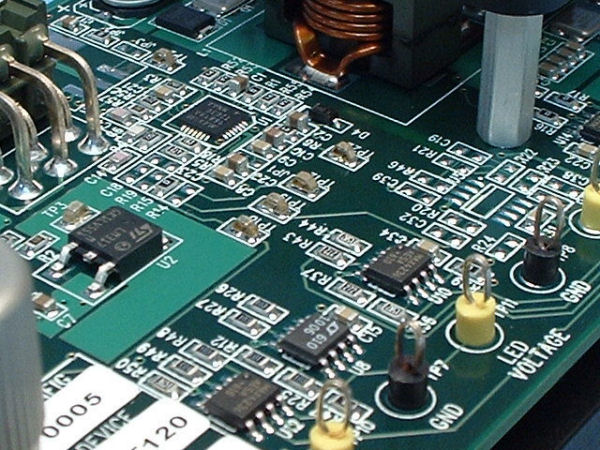

Driver card for driving high power LEDs. Capable of CW and pulsed current up to 36A.

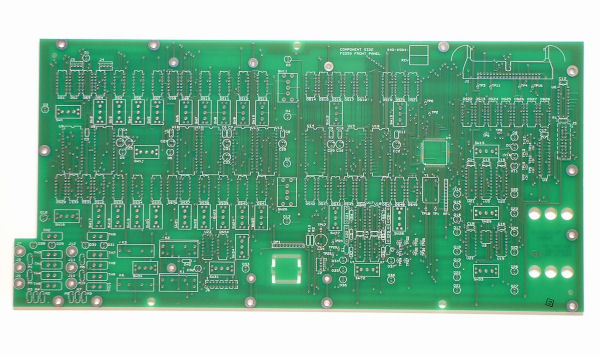

PCB for front panel display of a portable circuit breaker tester.

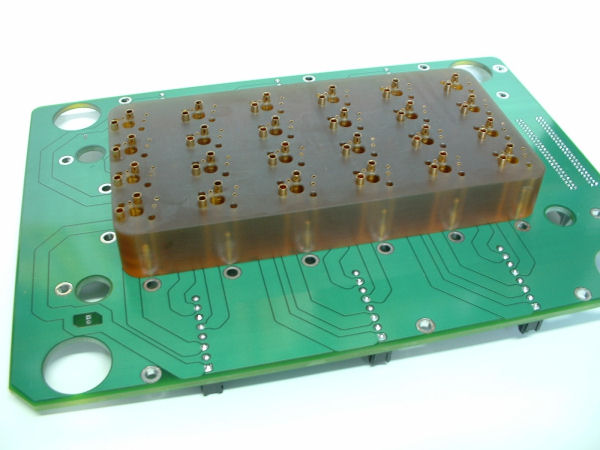

Contactor PCB and pogo pin block for a fixture used to test high brightness LEDs.

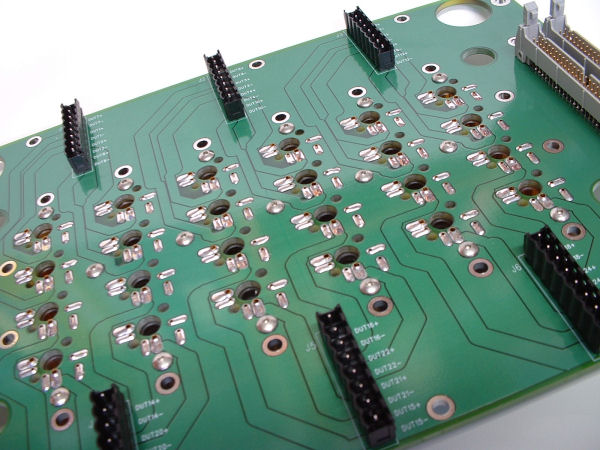

Top view of contactor block.
