Portfolio of
Example Projects
Sheet Metal Designs
Shown below are some examples of sheet metal parts that we designed for some of our projects. Our system involves using SolidWorks to design the flat pattern and then having the parts laser cut and formed. This system allows for a very quick turn since almost any shape can be cut with a laser and there is no need for special punch and die tooling. Good sheet metal capability is a nice asset when combined with electronic and electro-mechanical design and prototyping since it allows us to provide clean robust packaging, enclosures, and sheet metal parts for our projects.

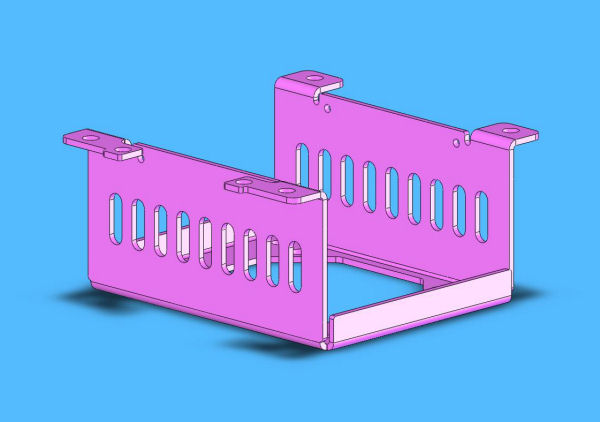

Sheet metal bracket for a heatsink which was part of a LED evaluation kit.

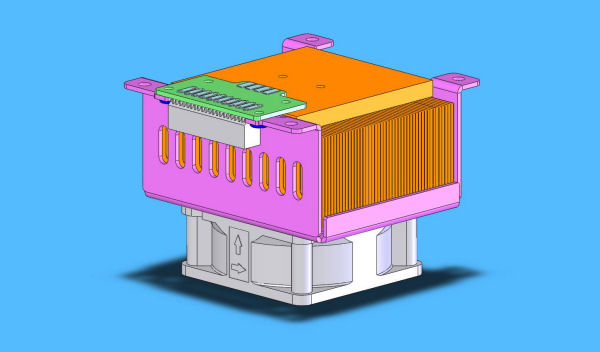

Bracket and associated heatsink, fan and connector PCB.
Sheet metal cabinet for a power supply and drivers for a LED light engine.
Sheet metal cabinet for a LED demonstration kit.
